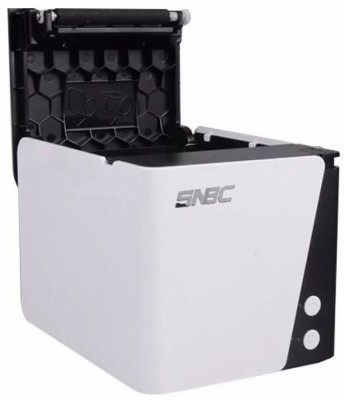

SNBC RP-N80 Direct Thermal Receipt Printer - USB / Serial / Ethernet

SNBC RP-N80 Direct Thermal Receipt Printer - USB / Serial / Ethernet, 203 dpi Resolution, Maximum 72mm print width, Maximum 200mm/s print speed, Cash drawer control

Overview:

BTP-N80 80mm POS receipt thermal printer
BTP-N80 is a new compact 80mm thermal receipt printer. The black/white shell and metal Logo design makes it more distinctive. The product supports Wi-Fi and Bluetooth connection to meet wireless printing needs. Suitable for restaurants, retail, entertainment, medical industries and other small space applications.

Features:

203x203PDI high quality printing
Compact fashion design, 35% smaller than similar products
80mm width printing increases paper usage
Modular mechanism can be installed and used as a panel printer
Save paper up to 20% with paper saving mode

Specifications:

Product Code RPN80USE
Item BTP-N80
Print
Print method Direct thermal line printing
Resolution 203x203DPI
Print width Max. 72mm
Print speed Max. 200mm/s
Memory 4MB Flash
Sensor Photoelectric sensor
Cash drawer control 1 cash drawer
Interface USB, USB+WIFI, USB+Serial+Bluetooth, USB+Ethernet
Barcodes
One-dimensional barcode JAN8(EAN8), JAN(EAN13), ITFUPC-A, UPC-E, CODE 39, CODE 93, CODE 128, CODABAR
Character set USA, France, Germany, UK, Denmark I, Denmark II, Italy, Sweden, Spain I, Spain II, Japan, Norway, Latin America, Korea, Japanese, Chinese, GB18030, GB2312
Fonts
Fonts Font A(12x24), Font B(9x17), Kanji Font(24x24)
Paper
Paper type Continuous paper, Marked paper
Paper thickness 0.06~0.08mm
Paper roll width 80±0.5mm
Paper roll OD Max.83mm
Paper cut Full cut, Partial cut, Tear off
Power supply
Input AC 100~240V, 50/60Hz
Output 24V, 2.5A
Reliability
Print head lifetime 100km
Cutter lifetime 1,000,000 cuts
Environment
Operation condition 5~45ºC, 20~90%RH(40ºC)
Storage condition -40~60ºC, 20~93% RH(40ºC)
Physics Spec.
Dimensions 126(W)x160.5(L)x116.5(H)mm
